ROXON HX170 Compact Belt Condition Monitoring System
Engineering & Technological Description

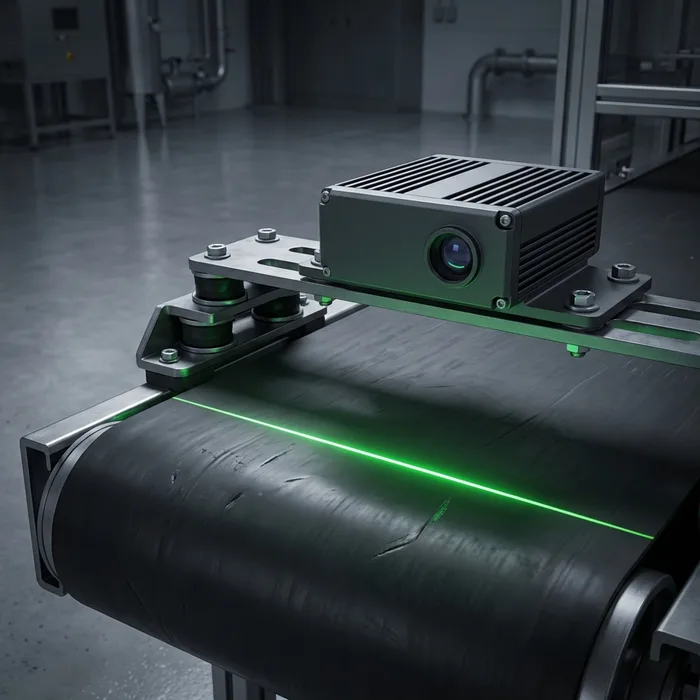

The ROXON HX170 Compact Belt Condition Monitoring System offers a compact, highly efficient, and durable solution designed for quick and easy installation on medium and narrow conveyor systems, with a focus on monitoring the material carrying side of the belt. The system is built inside a rugged, protective housing integrated with advanced vibration dampening mechanisms, enabling it to operate with perfect measurement accuracy even in harsh environments suffering from strong mechanical vibration (such as near vibrating screens and crushers). This model comes with integrated belt wear monitoring and can be scaled for extremely wide belts by installing multiple parallel sensors working in perfect synchronization. The system maintains a continuous database, mapping existing damages and alerting on the development of new cracks or defects without any physical contact or manual intervention.
Technological Benefits & Engineering Value
· Compact Package & Easy Installation: Lightweight, compact design allows for rapid field installation with minimal structural modifications required.
· Engineered Vibration Dampening: Built-in shock absorption protects sensitive optical and electronic sensors from extreme vibrations near crushing and screening hardware.
· Width Scalability & Modularity: Easily scales to cover extra-wide belts (exceeding 1600 mm) by installing multiple sensors in parallel configurations.
· Integrated Belt Wear Monitoring: Gathers continuous wear data over time to allow maintenance teams to forecast belt replacements months in advance.
· Robust Outdoor Durability: Completely sealed against dust, water, mud, and humidity, ensuring reliable, uninterrupted service in challenging quarries and industrial plants.
Heavy Industry End-Use Applications
· Recycling and Construction Waste Facilities: Active monitoring of narrow conveyor lines prone to severe punctures and longitudinal cuts caused by sharp rebar, nails, and concrete fragments.
· Aggregates and Sand Quarries: Tracking wear on belts situated directly beneath primary or secondary discharge chutes, where heavy material impact accelerates belt thinning.
· Chemical and Fertilizer Pack-Out Areas: Compact, non-intrusive protection for internal transfer conveyors within production halls, handling highly abrasive granular materials.
